Catalog no. 110.6157-1.3

Operating flow rate

0.2-3 mL/min; 1-15 cm/min; 2-30 CV/min

Connector

10-32 UNF coned port 1/16’’ OD tubing connection

SO3 (Sulfonyl)

• Strong cation exchanger

• Working range, pH 2–13

• Binds molecules with predominantly positive charge, repels molecules a predominantly negative charge

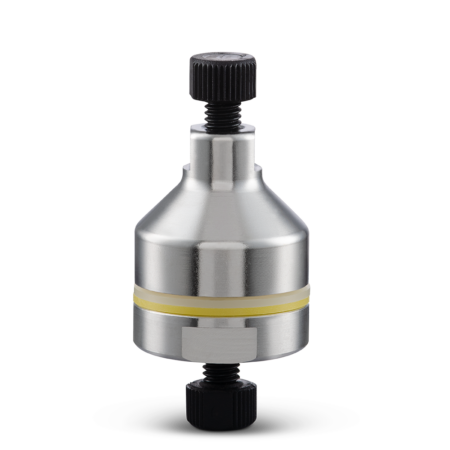

CIMac™ Analytical Columns are intended for fast and reproducible HPLC monitoring and quantitation of large proteins, plasmid DNA, viruses, virus-like particles, and phages. They were primarily designed for the in-process and final control of various samples at different stages of the purification process. They can be operated at high volumetric flow rates (from 1 to 20 column volumes/min); therefore, the information about the product quantity and purity can be obtained within a few minutes. CIMac™ Analytical Columns are fast and reliable PAT tools, providing:

• Rapid, high resolution analysis, achieved in minutes

• Flow independent separation

• High sensitivity and reproducibility
